Objective:

Shoot rare military memorabilia (medals, daggers, insignias, etc.) for inclusion in to an auction catalog and online viewing portal. Images must be large (3000-4000px, .tiff), with no specular reflection, especially the dagger blades (ornate etchings), yet show depth and texture of every item. Some edge specular was acceptable and desired.

Background:
I was invited to a test shoot; Determine my ability to produce the image quality required. Of course, the people inviting me in, are not photographers and did not completely communicate the details of how, what or where I’d be shooting. So I loaded up the car with a little bit of everything and off I went.

During the test shoot it became obvious I needed to “MacGyver” a better solution than bouncing a soft box off tabletop white seamless. I needed an indirect, side lit solution, height adjustable with the camera directly overhead.

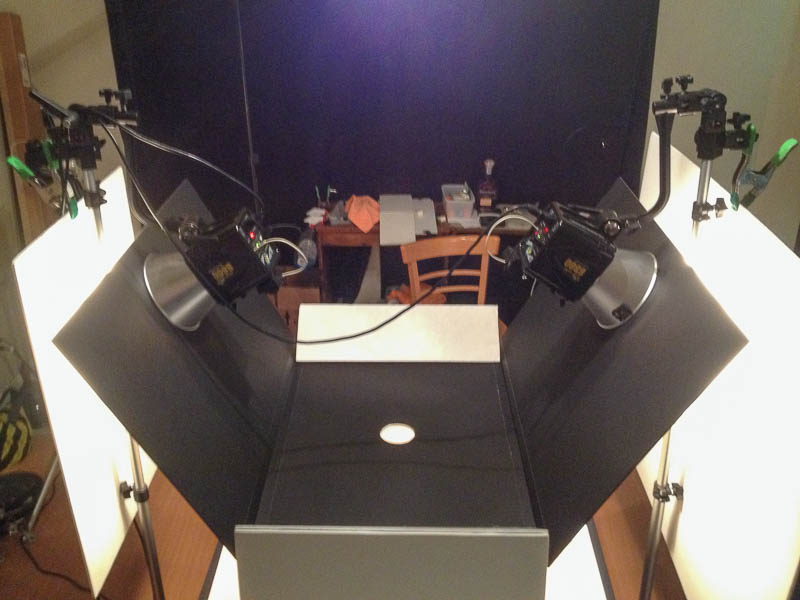

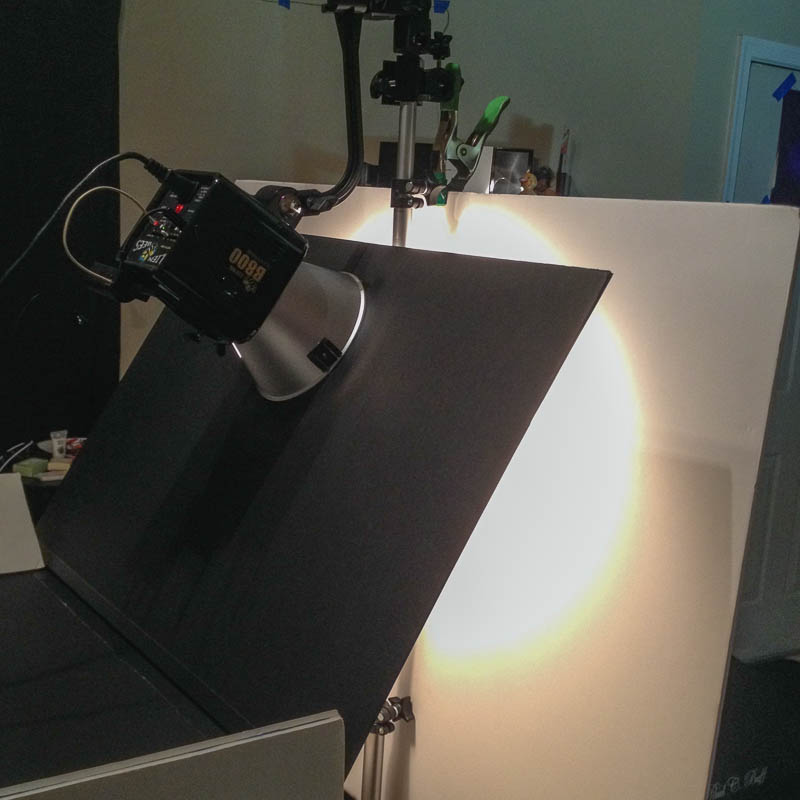

Using what I had around the house, I needed only two extra pieces of foam board. The three black boards are taped together, creating a trifold. The two holes cut for the storbs hold the trifold in place nicely and are not affected by heat from the modeling lamps.

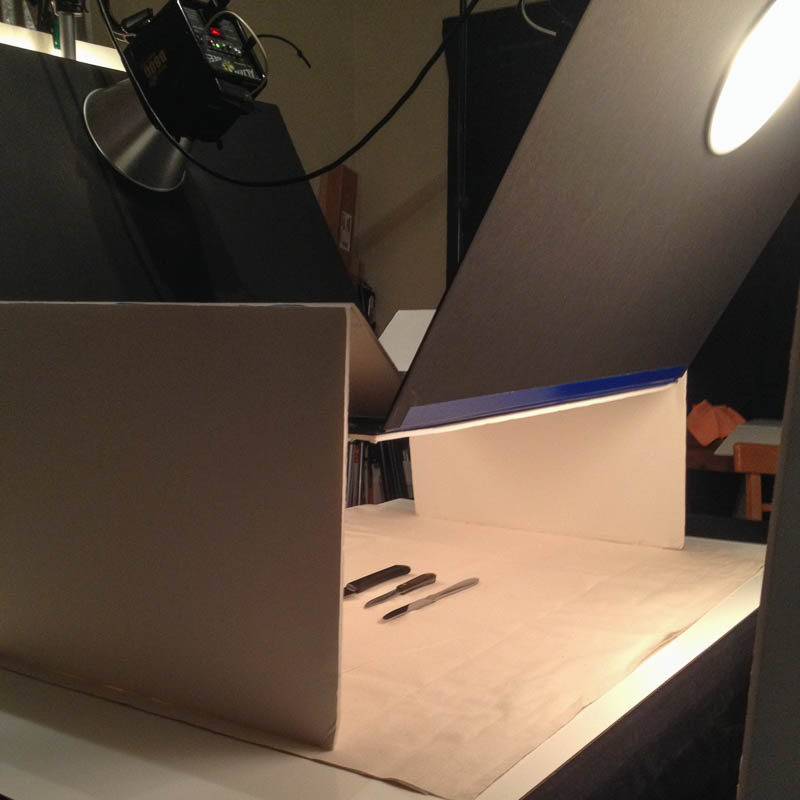

I was originally thinking black board for zero reflection on the knife blades. While that did work, adding a white board clamped to the center board, is much better for a uniform, non-specular reflection. And, now I have both options should the image call for a change up. I also included two white boards on each end to provide more uniform lighting.

Final Shot:

_DSC6292web

Light stand (one side) consists of: Standard light stand with optional sand bag
Swivel umbrella adaptor with double stud adaptor
> Paul C Buff mini boom arm
> Pole clamp connected to large spring clamp holding 3×4’ white foam board reflector
